Overview
Retailers with clean rooms or self-managed audience segments can synchronize customer and segment data to enable custom audience delivery for top advertisers and general audiences. This integration involves using your CDP to supply customer/segment information to Epsilon. Either by API or file.
Integration Requirements
- Standard onsite integration must include customer ID across all relevant touchpoints (where available).
- Customer ID feed of customers, by API or file feed
- Segment feed by API or file feed

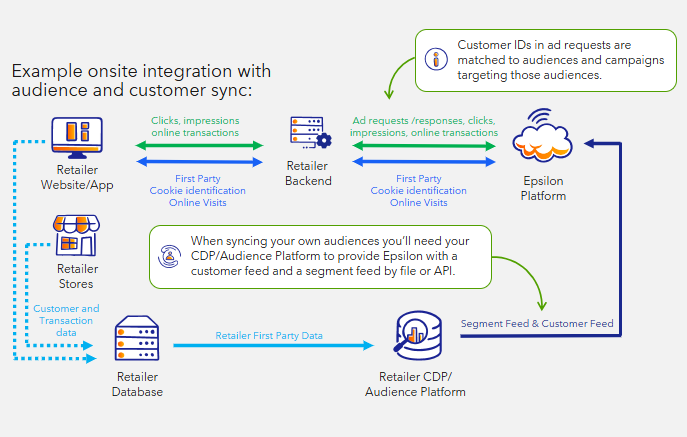

How It Works
The CDP or audience platform provides customer and segment data to Epsilon using file upload or API. Customer IDs included in ad requests are matched to audience segments and associated campaigns. This enables precise targeting based on custom or general audience definitions.
Integration Examples
Ad Request Example: Ad request containing customer ID:
POST $BASE_URL/v1/ads/generate HTTP/1.1
accept: application/json
content-type: application/json
Authorization: Basic <API_KEY>
{
"customerId": "wertg5432a",
"sessionId": "ec9-4e07-881d-3e9",
"dtmCookieId": "AAAF8xLBTA968AB6TOthAAAAAAE",
"placement": "search",
"catalogId": "628dbe95-2ec9-4e07-881d-3e9f92ab2e0b",
"searchTerm": "chocolate",
"options": {
"filterMode": "AndOr"
},
"maxNumberOfAds": 3
}
Your ad request must contain
customerId, regardless of if you are integrating via file or API.
Feed File Sync Integration (Recommended)
When syncing customers and segments by file, we require two files:
- Segment file
- Customer file
Segment File
A segment file is used to provide a segment ID which is shown in the UI, a name, and description. It can also be used to specify any specific team_ids that can view a segment, allowing you to curate segments for specific advertisers.
| segment_id | name | description | team_ids |
|---|---|---|---|
| general-segment-1 | High Spending Shoppers | Shoppers with an average weekly shop in the top 15%. | |
| general-segment-2 | Value Shoppers | Shoppers that have a higher basket % of value driven products. | |
| general-segment-3 | Recurring Shoppers | Shoppers that shop every week on average. | |
| custom-segment-1 | Custom: High Purchase Recency BrandCo | Customers purchasing BrandCo in the last 30 days. | ["a5166fc4-f874-4741-a721-c05ffd9941a5","92f4b91f-0089-4102-b13b-6015da8e0174"] |
View the Segment Reference Guide here.
Customer File
Your customer file is used to create a single customer and link them to segments, you only need to provide customer_id and segment_ids
| customer_id | segments |
|---|---|
| cust_12345 | ["general-segment-3", "general-segment-4"] |
| cust_67890 | ["general-segment-3"] |
View the Customer Reference Guide here.
API Sync Integration
When syncing customers and segments by API, there are three operations that need to be completed.
- Create segments
- Optional: manager segment access
- Create customers
- Manage customer-segment linking
Creating Segments via API
The first thing you want to do is create your segments to link customers to.
You need to provide a segment ID which is shown in the UI, a name, description, as well as your retailer team.
Important: The segments API uses bearer authorisation used by the Partner API. You will need to generate a bearer token and use it. Learn more: Authentication requests.
POST $BASE_URL/v1/segments HTTP/1.1
accept: application/json
content-type: application/json
Authorization: Bearer <API_KEY>
{
"segment":{
"segmentId": "general-segment-4",
"sourceId": "DEFAULT_SOURCE_ID",
"name": "Value Shoppers",
"description": "Shoppers that have a higher basket % of value driven products.",
"retailerTeamId": "13c84def-41cb-4f99-a3fc-6788264f79fe"
}
}
View the reference for the Create a segment endpoint here.
Optional: manage segment access
You can use the manage-access function to provide access to selected advertisers to see the segment, allowing you to curate segments for specific advertisers.
POST $BASE_URL/v1/segments/{id}:manage-access HTTP/1.1
accept: application/json
content-type: application/json
Authorization: Bearer <API_KEY>
{
"accessTeamIds":[
"90d5f138-2090-412b-a397-1f59ea6a31b3","1439f6f2-8c43-4ec5-b511-fc153f7d8119"
]
}
View the reference for the Manage access to a specific segment endpoint here
Creating Customers via API
The customers API uses basic authorisation used by the Integration API.
POST $BASE_URL/v1/customers HTTP/1.1
accept: application/json
content-type: application/json
Authorization: Basic <API_KEY>
{
"customers": [
{
"id": "cust_12345"
},
{
"id": "cust_67890"
}
}
]
}
Once complete, you also need to create segments to link customers to. You can create up to 100 customers per request.
View the specification for the API to create customers here.
Link Customers to Segments via API
After creating the segments, use the /customers/manage-segments API to link customers to segments
POST $BASE_URL/v1/customers/manage-segments HTTP/1.1
accept: application/json
content-type: application/json
Authorization: Basic <API_KEY>
{
"customerId": "cust_12345",
"teamId":"13c84def-41cb-4f99-a3fc-6788264f79fe",
"segments": {
"segmentIds":[
"general-segment-4","general-segment-3"
]
}
}
teamId in this request is your retailer team ID.
View the specification for the API to manage segments and customers here.
